WATTS
750W
MODEL

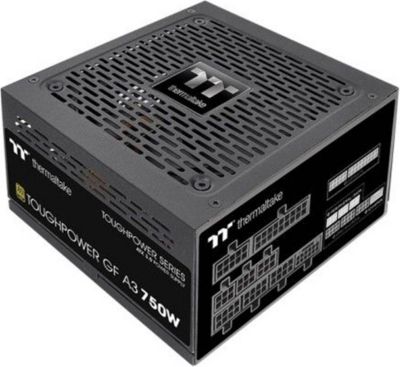

TTP-750AH3FCG
MAX. OUTPUT CAPACITY
750W
PEAK OUTPUT CAPACITY
900W
COULEUR
Black
DIMENSION ( W / H / D )
150mm(W) x 86mm(H) x 160mm(D)
PFC (POWER FACTOR CORRECTION)
Active PFC
POWER GOOD SIGNAL
100-500 msec
HOLD UP TIME
> 16msec at 100% of full load
INPUT CURRENT
10A
INPUT FREQUENCY RANGE
50Hz - 60Hz
INPUT VOLTAGE
100V – 240V~
OPERATING TEMPERATURE
0 C to + 50 C
OPERATING HUMIDITY
20% to 90%,non-condensing
STORAGE TEMPERATURE
-20 C to + 70 C
STORAGE HUMIDITY
5% to 95%, non-condensing
SYSTÈME DE REFROIDISSEMENT
14cm hydraulic bearing fan
EFFICIENCY
Meet 80 PLUS ?Gold at 115Vac input.
MTBF
120,000 hrs minimum
SAFETY APPROVAL
CE/cTUVus/TÜV SÜD/FCC/BSMI/EAC
PCI-E 6+2PIN
4
PROTECTION
OCP, OVP, UVP, OPP, SCP, OTP
